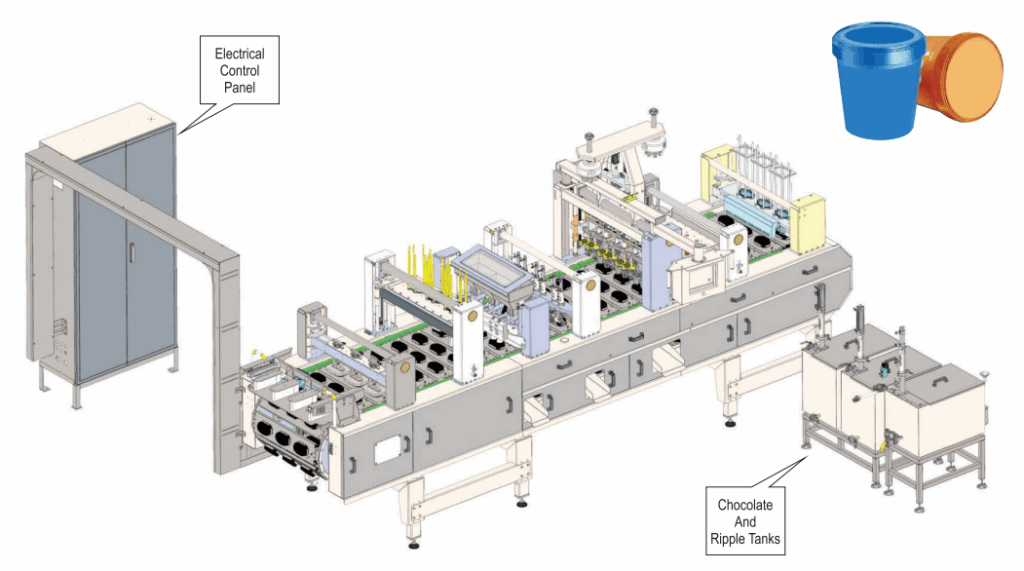

Liner Tube Filling Machine
- Liner automatic plastic family pack/container filling machine made of strong stainless steel – steel frame with adjustable legs.
- Servo driven with panel 10” LCD touch screen and low noise level; also includes PLC with remote access.
- Our best-work shipment – lines for ice cream combine our proven solutions into the most optimal setup for a specific product at a specific capacity. This means high yields, product versatility, and highly reliable production – with guaranteed performance.
- Volumetric fillers with constant pressure for ice cream, single or double head, with ripple swirl, pencil, and other decoration units.
- Dry ingredient dosing units.
- Snap-in, snap-on, overcap, and other types of lids.
- Ejection-type transfer products on conveyor.
- All components are of the highest standard.
- Can also be customized as per requirement at extra cost.
Technical Specifications
| Paramete | Unit | ||
|---|---|---|---|
| Productivity | Max Productivity | (Tubs/Hrs) | 2000 - 4000 |
| Volume | (ML) | 250 - 1000 | |
| Number of Station | — | 10 | |
| Voltage | Overall Unit (V) | V | 430 V |
| Electric Heating (KW) | KW | 6.6 KW | |
| Frequency | HZ | HZ | 50 |
| Gross Power | KW | KW | 10 KW |
| Air Supply | Pressure (Min) | Bar | 7.5 Bar |
| Consumption | CFM | 65 | |
| Overall Unit Weight | Kg | Kg | 3000 Kg |
| Overall Dimensions (L*W*H) | MT | MT | 5.4 * 3.5 * 2.5 |
