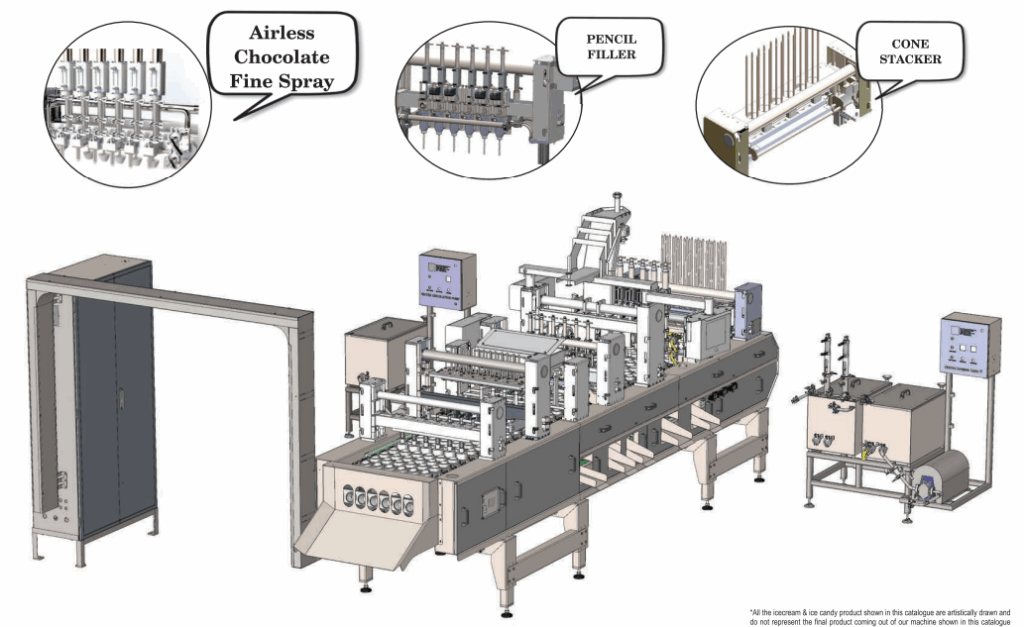

Linear Cone Filling Machine
- Full automatic by intermittent motion with multi-head filling. The machine is completely framed in stainless steel. Only for special applications, plastic and aluminum anodized are used.
- Each station has a specially designed pneumatic cylinder and servo for the specific operation in order to obtain the ideal movement.
- Utilizing of motional control programmable logical controller and with remote access.
- Products information auto-memorize.
- Ultra high life cycle.
- Integrated air receivers for constant air supply to station.
- Servo driven system with rigid & strong chain and high precision gear box.
- Capacity from 12000–24000 pcs/hr with constant pressure ice cream and high-quality cone with sleeve.
- Optional pick & place and “O” conveyor.
Technical Specifications
| SPECIFICATION | UNIT | LCF-6Lane-12000 | LCF-X lane 20-24K |
|---|---|---|---|
| Max. Productivity | Productivity (Pcs/Hr) | 12000 | 20000 - 24000 |
| Max. Weight (GM) | 35 - 120 | 35 - 120 | |
| Filling Contain | - | Cone | Cone |
| Number of Station | Pc | 10 | 10 |
| Electrical | Voltage (V) | 380 / 430 | 380 / 430 |
| Frequency (Hz) | 50Hz | 50Hz | |
| Power (KW) | 20kw | 25 - 30kw | |
| Electric Heating Voltage (V) | V | 415 | 415 |
| Compressed Air | Pressure (Bar) | 7.5 | 7.5 |
| Consumption (CFM) | 90 | 120 | |
| Overall Dimensions (L × W × H) | MT | 5.36 × 1.95 × 2.54 | 6.5 × 2.3 × 2.56 |
| Overall Unit Weight Approx. | Tons | 2.5 | 3.5 |
